ARTA offers a wide range of Bends. A selection of these are listed below. If you need a bend that is not listed in the table below, please do not hesitate to contact us.
Please use the code key to complete the ordering code by insert the required flange instead for "xxR".

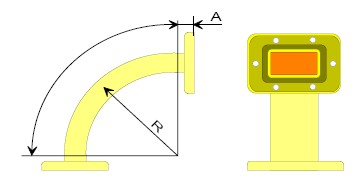

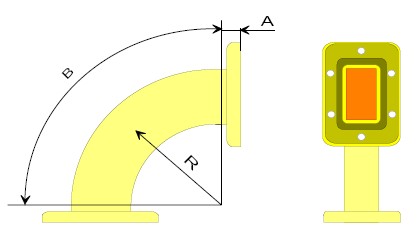

Fig.: E-Bend Fig.: H-Bend |
|
WG-Bend R40
| WG Frecuency Range |
3300 |
4900 |
|
| |
| Specification/version (A) |
|
|
|
| Frecuency Range *(A) |
3580 |
4200 |
Ghz |
| VSWR (A) |
=< 1.025 |
|
|
| Loss (A) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
PDR40 |
UER40 |
|
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR40-30D-A-Ma |
30 |
E-Bend |
70 |
15 |
| BE-xxR40-45D-A-Ma |
45 |
E-Bend |
70 |
15 |
| BE-xxR40-60D-A-Ma |
60 |
E-Bend |
70 |
15 |
| BE-xxR40-90D-A-Ma |
90 |
E-Bend |
70 |
15 |
| BH-xxR40-30D-A-Ma |
30 |
H-Bend |
120 |
15 |
| BH-xxR40-45D-A-Ma |
45 |
H-Bend |
120 |
15 |
| BH-xxR40-60D-A-Ma |
60 |
H-Bend |
120 |
15 |
| BH-xxR40-90D-A-Ma |
90 |
H-Bend |
120 |
15 |
WG-Bend R48
| WG Frecuency Range |
3950 |
5850 |
|
| |
| Specification/version (A) |
|
|
|
| Frecuency Range *(A) |
4400 |
5000 |
Ghz |
| VSWR (A) |
=< 1.025 |
|
|
| Loss (A) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
PDR48 |
UER48 |
|
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR48-30D-A-Ma |
30 |
E-Bend |
66 |
15 |
| BE-xxR48-45D-A-Ma |
45 |
E-Bend |
66 |
15 |
| BE-xxR48-60D-A-Ma |
60 |
E-Bend |
66 |
15 |
| BE-xxR48-90D-A-Ma |
90 |
E-Bend |
66 |
15 |
| BH-xxR48-30D-A-Ma |
30 |
H-Bend |
110 |
15 |
| BH-xxR48-45D-A-Ma |
45 |
H-Bend |
110 |
15 |
| BH-xxR48-60D-A-Ma |
60 |
H-Bend |
110 |
15 |
| BH-xxR48-90D-A-Ma |
90 |
H-Bend |
110 |
15 |
WG-Bend R58
| WG Frecuency Range |
4900 |
7050 |
Ghz |
| |
| Specification/version (A) |
|
|
|
| Frecuency Range *(A) |
5925 |
6425 |
Ghz |
| VSWR (A) |
=< 1.025 |
|
|
| Loss (A) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
PDR58 |
UER58 |
|
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR58-30D-A-Ma |
30 |
E-Bend |
66 |
15 |
| BE-xxR58-45D-A-Ma |
45 |
E-Bend |
66 |
15 |
| BE-xxR58-60D-A-Ma |
60 |
E-Bend |
66 |
15 |
| BE-xxR58-90D-A-Ma |
90 |
E-Bend |
66 |
15 |
| BH-xxR58-30D-A-Ma |
30 |
H-Bend |
100 |
15 |
| BH-xxR58-45D-A-Ma |
45 |
H-Bend |
100 |
15 |
| BH-xxR58-60D-A-Ma |
60 |
H-Bend |
100 |
15 |
| BH-xxR58-90D-A-Ma |
90 |
H-Bend |
100 |
15 |
WG-Bend R70
| WG Frecuency Range |
5850 |
8200 |
Ghz |
| |
| Specification/version (W) |
|
|
|
| Frecuency Range *(W) |
5925 |
7900 |
Ghz |
| VSWR (W) |
=< 1.025 |
|
|
| Loss (W) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
PDR70 |
UER70 |
|
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR70-30D-W-Ma |
30 |
E-Bend |
66 |
15 |
| BE-xxR70-45D-W-Ma |
45 |
E-Bend |
66 |
15 |
| BE-xxR70-60D-W-Ma |
60 |
E-Bend |
66 |
15 |
| BE-xxR70-90D-W-Ma |
90 |
E-Bend |
66 |
15 |
| BH-xxR70-30D-W-Ma |
30 |
H-Bend |
100 |
15 |
| BH-xxR70-45D-W-Ma |
45 |
H-Bend |
100 |
15 |
| BH-xxR70-60D-W-Ma |
60 |
H-Bend |
100 |
15 |
| BH-xxR70-90D-W-Ma |
90 |
H-Bend |
100 |
15 |
WG-Bend R84
| WG Frecuency Range |
7050 |
10000 |
Ghz |
| |
| Specification/version (W) |
|
|
|
| Frecuency Range *(W) |
7125 |
8500 |
Ghz |
| VSWR (W) |
=< 1.025 |
|
|
| Loss (W) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
PDR84 |
UER84 |
UBR84 |
PBR84 |
CBR84 |
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR84-30D-W-Ma |
30 |
E-Bend |
50 |
15 |
| BE-xxR84-45D-W-Ma |
45 |
E-Bend |
50 |
15 |
| BE-xxR84-60D-W-Ma |
60 |
E-Bend |
50 |
15 |
| BE-xxR84-90D-W-Ma |
90 |
E-Bend |
50 |
15 |
| BH-xxR84-30D-W-Ma |
30 |
H-Bend |
100 |
15 |
| BH-xxR84-45D-W-Ma |
45 |
H-Bend |
100 |
15 |
| BH-xxR84-60D-W-Ma |
60 |
H-Bend |
100 |
15 |
| BH-xxR84-90D-W-Ma |
90 |
H-Bend |
100 |
15 |
WG-Bend R100
| WG Frecuency Range |
8200 |
12400 |
Ghz |
| |
| Specification/version (A) |
|
|
|
| Frecuency Range *(A) |
10700 |
11700 |
Ghz |
| VSWR (A) |
=< 1.025 |
|
|
| Loss (A) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
PDR100 |
UER100 |
UBR100 |
PBR100 |
CBR100 |
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR100-30D-A-Ma |
30 |
E-Bend |
50 |
15 |
| BE-xxR100-45D-A-Ma |
45 |
E-Bend |
50 |
15 |
| BE-xxR100-60D-A-Ma |
60 |
E-Bend |
50 |
15 |
| BE-xxR100-90D-A-Ma |
90 |
E-Bend |
50 |
15 |
| BH-xxR100-30D-A-Ma |
30 |
H-Bend |
60 |
15 |
| BH-xxR100-45D-A-Ma |
45 |
H-Bend |
60 |
15 |
| BH-xxR100-60D-A-Ma |
60 |
H-Bend |
60 |
15 |
| BH-xxR100-90D-A-Ma |
90 |
H-Bend |
60 |
15 |
WG-Bend R120
| WG Frecuency Range |
10000 |
15000 |
Ghz |
| |
| Specification/version (A) |
|
|
|
| Frecuency Range *(A) |
12750 |
13250 |
Ghz |
| VSWR (A) |
=< 1.025 |
|
|
| Loss (A) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
PDR120 |
UER120 |
UBR120 |
PBR120 |
CBR120 |
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR120-30D-A-Ma |
30 |
E-Bend |
40 |
15 |
| BE-xxR120-45D-A-Ma |
45 |
E-Bend |
40 |
15 |
| BE-xxR120-60D-A-Ma |
60 |
E-Bend |
40 |
15 |
| BE-xxR120-90D-A-Ma |
90 |
E-Bend |
40 |
15 |
| BH-xxR120-30D-A-Ma |
30 |
H-Bend |
60 |
15 |
| BH-xxR120-45D-A-Ma |
45 |
H-Bend |
60 |
15 |
| BH-xxR120-60D-A-Ma |
60 |
H-Bend |
60 |
15 |
| BH-xxR120-90D-A-Ma |
90 |
H-Bend |
60 |
15 |
WG-Bend R140
| WG Frecuency Range |
10000 |
15000 |
Ghz |
| |
| Specification/version (A) |
|
|
|
| Frecuency Range *(A) |
12750 |
15350 |
Ghz |
| VSWR (A) |
=< 1.03 |
|
|
| Loss (A) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
PDR140 |
UBR140 |
PBR140 |
CBR140 |
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR140-30D-W-Ma |
30 |
E-Bend |
40 |
10 |
| BE-xxR140-45D-W-Ma |
45 |
E-Bend |
40 |
10 |
| BE-xxR140-60D-W-Ma |
60 |
E-Bend |
40 |
10 |
| BE-xxR140-90D-W-Ma |
90 |
E-Bend |
40 |
10 |
| BH-xxR140-30D-W-Ma |
30 |
H-Bend |
50 |
10 |
| BH-xxR140-45D-W-Ma |
45 |
H-Bend |
50 |
10 |
| BH-xxR140-60D-W-Ma |
60 |
H-Bend |
50 |
10 |
| BH-xxR140-90D-W-Ma |
90 |
H-Bend |
50 |
10 |
WG-Bend R220
| WG Frecuency Range |
17700 |
26500 |
Ghz |
| |
| Specification/version (A) |
|
|
|
| Frecuency Range *(A) |
17700 |
26500 |
Ghz |
| VSWR (A) |
=< 1.20 |
|
|
| Loss (A) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
UBR220 |
PBR220 |
CBR220 |
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR220-30D-A-Ma |
30 |
E-Bend |
40 |
10 |
| BE-xxR220-45D-A-Ma |
45 |
E-Bend |
40 |
10 |
| BE-xxR220-60D-A-Ma |
60 |
E-Bend |
40 |
10 |
| BE-xxR220-90D-A-Ma |
90 |
E-Bend |
40 |
10 |
| BH-xxR220-30D-A-Ma |
30 |
H-Bend |
50 |
10 |
| BH-xxR220-45D-A-Ma |
45 |
H-Bend |
50 |
10 |
| BH-xxR220-60D-A-Ma |
60 |
H-Bend |
50 |
10 |
| BH-xxR220-90D-A-Ma |
90 |
H-Bend |
50 |
10 |
WG-Bend R320
| WG Frecuency Range |
26500 |
40000 |
Ghz |
| |
| Specification/version (A) |
|
|
|
| Frecuency Range *(A) |
37000 |
40000 |
Ghz |
| VSWR (A) |
=< 1.20 |
|
|
| Loss (A) |
0,10 dB |
|
|
| |
| Standar Flanges (xxR) |
UBR320 |
PBR320 |
CBR320 |
| Available Material (Ma) |
Al |
Cu1 |
|
| Bend Code |
Ben(deg) |
Bend Type |
R=(mm) |
A=(mm) |
| BE-xxR320-30D-A-Ma |
30 |
E-Bend |
40 |
10 |
| BE-xxR320-45D-A-Ma |
45 |
E-Bend |
40 |
10 |
| BE-xxR320-60D-A-Ma |
60 |
E-Bend |
40 |
10 |
| BE-xxR320-90D-A-Ma |
90 |
E-Bend |
40 |
10 |
| BH-xxR320-30D-A-Ma |
30 |
H-Bend |
50 |
10 |
| BH-xxR320-45D-A-Ma |
45 |
H-Bend |
50 |
10 |
| BH-xxR320-60D-A-Ma |
60 |
H-Bend |
50 |
10 |
| BH-xxR320-90D-A-Ma |
90 |
H-Bend |
50 |
10 | Go to the top
|
|
|
|
